BEIBEN ND5319GFLZ POWER AND PARTICLE TRANSPORT VEHICLE
Classification:
Powder and Particle Transport Vehicle
-
-
- Power: Diesel
- Condition: New
- Warranty: 12 Months
- Cutomization: Available
- Emission Standard: ≥Euro 2
- Transmission Type: Manual/Automatic
-
Product Inquiry
If you have any questions or needs, please leave a message or contact us and we will reply you as soon as possible.
- Product Description
-
Dimensions:
11990×2500×3950 (mm)
Cargo
compartment
dimensions:
/
Total mass:
31000(Kg)
Load utilization
factor:
/
Curb Weight:
18300(Kg)
Rated load
capacity:
12570 (Kg)
Rated
passenger
capacity:
2-3 people
Anti-lock Braking
System:
/
Approach
Angle /
departure
angle:
26/15(°)
Front overhang/
Rear overhang:
1410/2580 (mm)
Fuel Type:
LNG
Emission
standards:
National Ⅲ
Axle load:
6500/6500/18000
Wheelbase:
1950+4600+1450(mm)
Number of
Axes:
4
Maximum speed:
90 (km/h)
Number of
Tires:
12 (pcs)
Tire
specifications:
12.00-20,12.00R20,11.00-20,11.00R20
Fuel
consumption:
/
Number of
springs:
12/12/13
Front track:
2045/2045 (mm)
Rear track:
1872/1872 (mm)
Other descriptions:

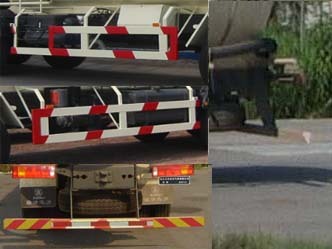

Optional medium and long cab, flat-top cab, bumper. Medium name: charcoal powder, medium density: 400 kg/m3, effective volume is 32.65 m3, tank wall thickness: head 6mm, cylinder 5mm, tank size: length: 9260mm, circular section Ф2412mm, head curved surface depth 600mm, head straight side height 25mm, head inner diameter Ф2400mm. The rated load (kg) corresponding to the number of 2 and 3 people in the cab is: 13060 and 12995 respectively. The rear overhang is 2525 when the wheelbase is 1950+4650+1350, and the rear overhang is 2475 when the wheelbase is 1950+4600+1450. The material of the protective device is Q235A, bolted connection, the section of the rear protective device.
-
-
参数
- Power Diesel
- Condition New
- Warranty 12 Months
- Cutomization Available
- Emission Standard ≥Euro 2
- Transmission Type Manual/Automatic
-
