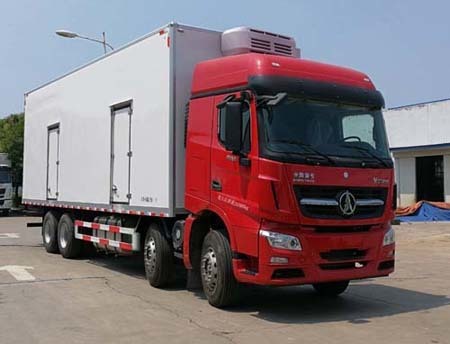

BEIBEN ND5310XLCZ01 REFRIGERATED TRUCK
Classification:
Refrigerated Truck
-
-
- Power: Diesel
- Condition: New
- Warranty: 12 Months
- Cutomization: Available
- Emission Standard: ≥Euro 2
- Transmission Type: Manual/Automatic
-
Product Inquiry
If you have any questions or needs, please leave a message or contact us and we will reply you as soon as possible.
- Product Description
-
Dimensions:
12000×2600×3960 (mm)
Cargo
compartment
dimensions:
9480×2440×2450
(mm)
Total mass:
31000(Kg)
Load utilization
factor:
/
Curb Weight:
12600(Kg)
Rated load
capacity:
18270,18205(Kg)
Rated
passenger
capacity:
2-3 people
Anti-lock Braking
System:
/
Approach
Angle /
departure
angle:
14.5/11(°)
Front overhang/
Rear overhang:
1500/2550(mm)
Fuel Type:
Diesel fuel
Emission
standards:
National Ⅴ
Axle load:
6500/6500/18000
Wheelbase:
1950+4650+1350(mm)
Number of
Axes:
4
Maximum speed:
90 (km/h)
Number of
Tires:
12 (pcs)
Tire
specifications:
12R22.5
Fuel
consumption:
40.5,41
(L/100Km)
Number of
springs:
2/2/3
Front track:
2045/2045,2064/2064 (mm)
Rear track:
1850/1850,1868/1868(mm)
Other descriptions:
This model can be equipped with ETC on-board device. The top of the car is closed and cannot be opened. Bumper, flat-top cab, rear windshield, fender are optional. The car is equipped with a driving recorder with satellite positioning function. The material of the protective device is Q235A; it is bolted, and the cross-section size of the rear lower protective device is 150mm (height) × 100mm (longitudinal width); the rear lower protection is 2300mm long and the ground clearance is 500mm. ABS system model: 44600XXXX0, manufacturer: WABCO Vehicle Control Systems (China) Co., Ltd. Engine/fuel consumption value correspondence: WP10H375E50/40.5, WP12.430E50/41. The cargo compartment can be equipped with one or both sides of the cargo compartment without doors, one or two single doors/double doors/opposite doors/linked doors/side sliding doors, the rear door and side doors can be equipped with box-type concealed locks or visible padlocks, the rear door can be equipped with a four-bar four-lock structure, and a refrigeration unit with equivalent power can be installed, the refrigeration unit is located in the upper front part of the cargo compartment or the lower part of the frame side. Only chassis WP10H375E50 and WP12.430E50 engines are used.
-
-
参数
- Power Diesel
- Condition New
- Warranty 12 Months
- Cutomization Available
- Emission Standard ≥Euro 2
- Transmission Type Manual/Automatic
-
