BEIBEN ND5310ZLJZ16 UNLOADING GARBAGE TRUCK
Classification:
Unloading Garbage Truck
-
-
- Power: Diesel
- Condition: New
- Warranty: 12 Months
- Cutomization: Available
- Emission Standard: ≥Euro 2
- Transmission Type: Manual/Automatic
-
Product Inquiry
If you have any questions or needs, please leave a message or contact us and we will reply you as soon as possible.
- Product Description
-
Dimensions:
18795,8835,8895,9585,9635,9785×2550×3484 (mm)
Cargo
compartment
dimensions:
5600,5800,6500,6800×2350,2300×900,1500 (mm)
Total mass:
31000(Kg)
Load utilization
factor:
/
Curb Weight:
15500(Kg)
Rated load
capacity:
15370(Kg)
Rated
passenger
capacity:
2-3 people
Anti-lock Braking
System:
/
Approach
Angle /
departure
angle:
17/25,17/30(°)
Front overhang/
Rear overhang:
1515/1430,1515/1470,1515/1530,1515/1620,1515/1670,1515/1820(mm)
Fuel Type:
Diesel fuel
Emission
standards:
National Ⅵ
Axle load:
6500/6500/18000
Wheelbase:
1950+2550+1350,1950+3150+1350,1950+2900+1350,1950+3400+1450,1950+3750+1350(mm)
Number of
Axes:
4
Maximum speed:
80 (km/h)
Number of
Tires:
12(pcs)
Tire
specifications:
12.00R20 18PR,11.00R20 18PR,12R22.5 18PR
Fuel
consumption:
40.1,40.2,40.3
(L/100Km)
Number of
springs:
4/4/5,10/10/12
Front track:
2004/2004(mm)
Rear track:
1874/1874(mm)
Other descriptions:

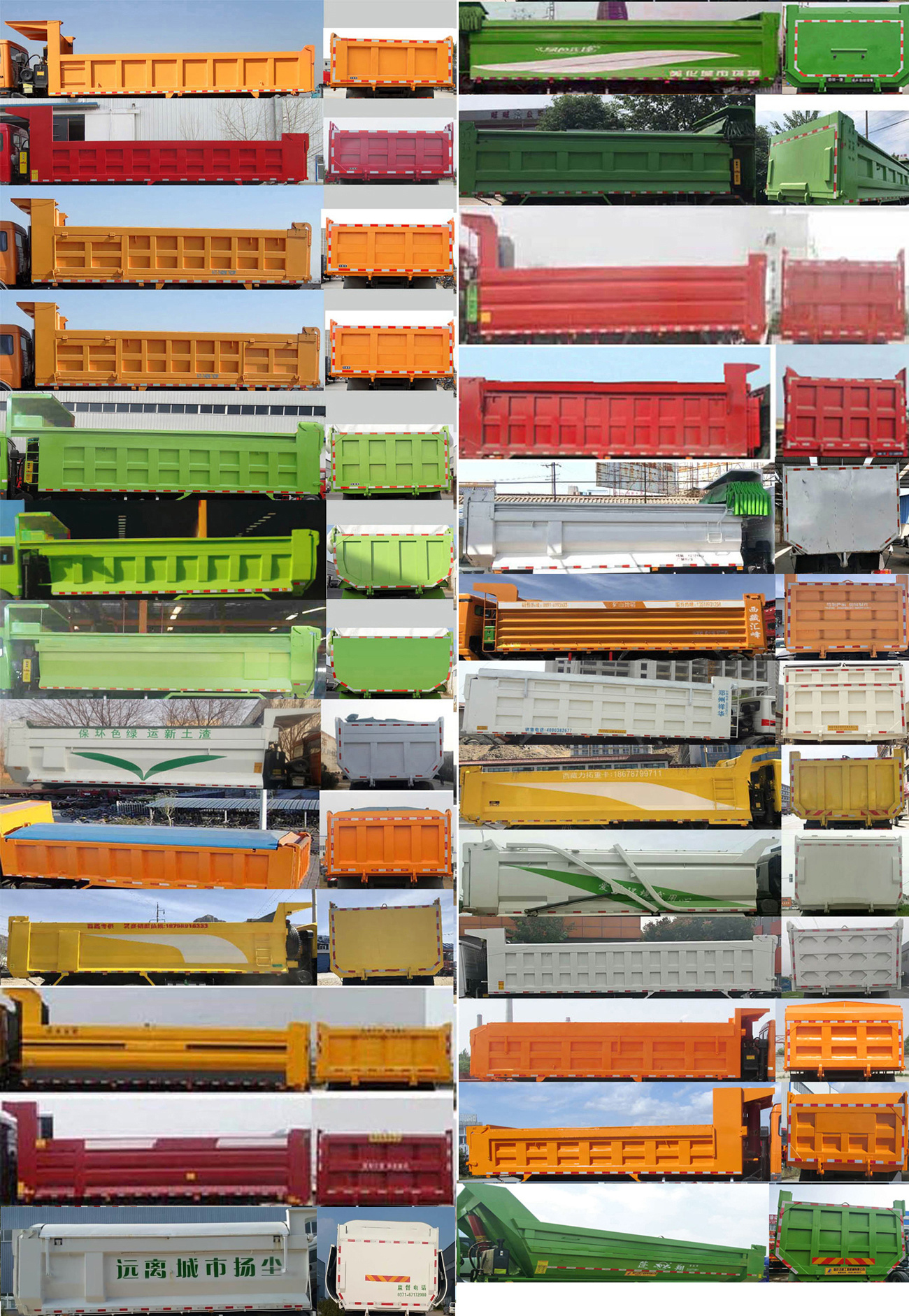

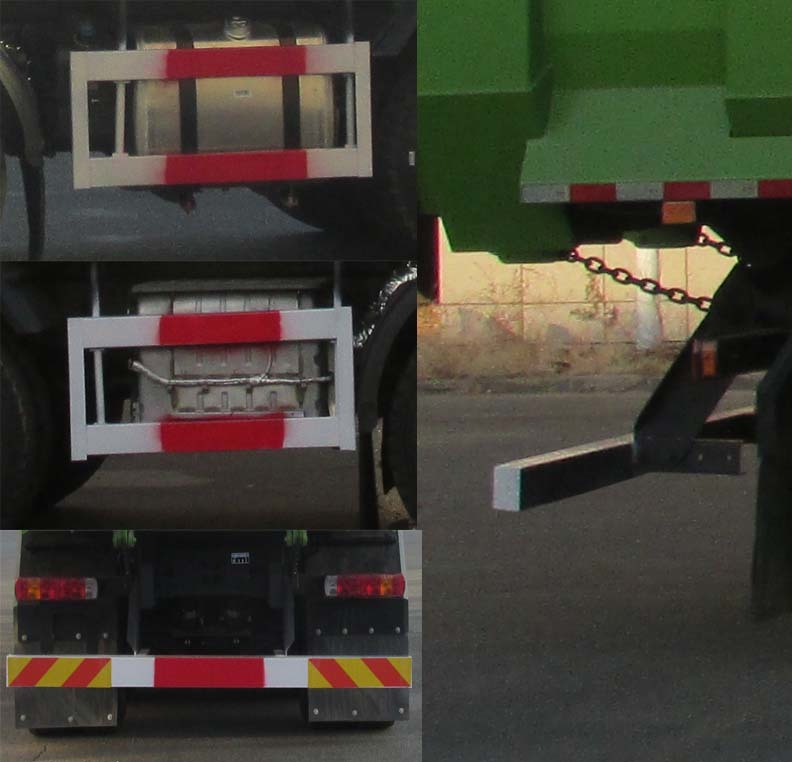

This model can be equipped with ETC on-board device. Optional air filter, different cargo box structure, various environmental protection roof structure, long cab, ladder, rearview mirror, rear combination taillight, battery frame position, color matching, fuel tank position, chamfer at both ends of rear protection. The self-unloading method is rear unloading, and the vehicle is equipped with a driving recorder with satellite positioning function. The material of the protective device is Q235A; bolt connection is adopted, and the cross-section size of the rear lower protective device is 120mm (height) × 100mm (longitudinal width); the rear lower protection is 2400mm long and the ground clearance is 500mm. ABS system model/manufacturer: CM4XL-4S/4M/Guangzhou Ruili Komi Automotive Electronics Co., Ltd., ABS-E/WABCO Vehicle Control Systems (China) Co., Ltd. Engine/fuel consumption value correspondence: WP10H350E62/40.1, WP10H375E62/40.2, WP12.430E62/40.3. For medium and long driving: the corresponding relationship between vehicle length/wheelbase/rear overhang/cargo box length is: 8795/1950+2550+1350/1430/5600, 8895/1950+2550+1350/1530/5800, 9585/1950+3150+1350/1620/6500, 9785/1950+3150+1350/1820/6800. For long driving: the corresponding relationship between vehicle length/wheelbase/rear overhang/cargo box length is: 8835/1950+2550+1350/1470/5600, 9635/1950+3150+1350/1670/6500. Only two wheelbases are available: 1950+2550+1350 and 1950+3150+1350.
-
-
参数
- Power Diesel
- Condition New
- Warranty 12 Months
- Cutomization Available
- Emission Standard ≥Euro 2
- Transmission Type Manual/Automatic
-
