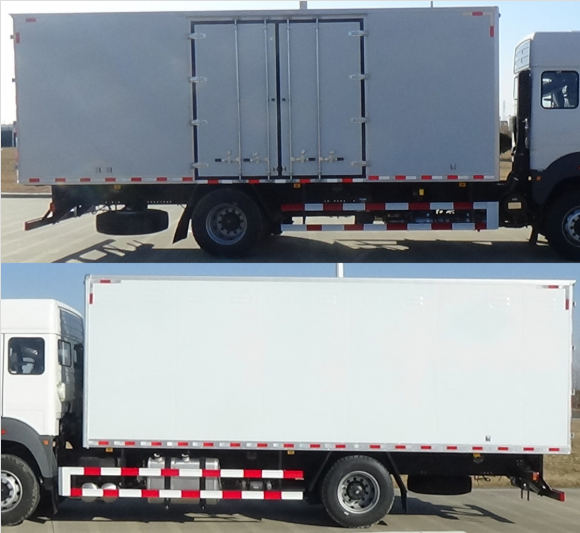

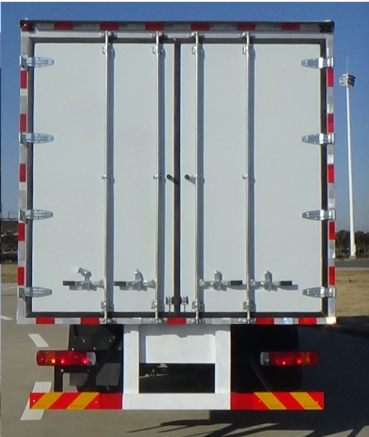

BEI BEN ND5180XXYZ01 VAN TRANSPORTER
Classification:
Van transporter
-
-
- Power: Diesel
- Condition: New
- Warranty: 12 Months
- Cutomization: Available
- Emission Standard: ≥Euro 2
- Transmission Type: Manual/Automatic
-
Product Inquiry
If you have any questions or needs, please leave a message or contact us and we will reply you as soon as possible.
- Product Description
-
Dimensions:
9530×2550×3620(mm)
Cargo
compartment
dimensions:
6800×2430×2300
(mm)
Total mass:
18000(Kg)
Load utilization
factor:
/
Curb Weight:
7970(Kg)
Rated load
capacity:
9900(Kg)
Rated
passenger
capacity:
2-3 people
Anti-lock Braking
System:
/
Approach
Angle /
departure
angle:
15/9(°)
Front overhang/
Rear overhang:
1435/2995(mm)
Fuel Type:
Diesel fuel
Emission
standards:
National Ⅵ
Axle load:
6500/11500
Wheelbase:
5100(mm)
Number of
Axes:
2
Maximum speed:
80 (km/h)
Number of
Tires:
6(pcs)
Tire
specifications:
295/80R22.5 18PR
Fuel
consumption:
26.5 (L/100Km)
Number of
springs:
3/-
Front track:
2040(mm)
Rear track:
1855(mm)
Other descriptions:
The top of the compartment is closed and cannot be opened. ETC vehicle-mounted device with direct power supply. Engine/fuel consumption (L/100km): WP4.6NQ240E62/26.5. When installing a hydraulic tailgate: the length of the hydraulic tailgate when it is horizontally retracted is 300mm and the mass is 550kg. The rear protection is connected to the hydraulic tailgate by welding + bolts, and the hydraulic tailgate is connected to the vehicle by bolts. The rear protection is φ120mm round steel, ground clearance: 500mm. The material is: Q235, the cross-section size of the rear lower protection device is φ120mm×5mm (thickness); the length of the rear lower protection is 2010mm. Engine/net power (kw): WP4.6NQ240E62/173. Install a driving recorder with satellite positioning function. EBS system manufacturer/model: Guangzhou Ruili Komi Automotive Electronics Co., Ltd./CM-EBS. Install a speed limiter, the speed limit is 80km/h. Optional without hydraulic tailgate; Optional without tailgate rear guard, material is Q235, rear guard is welded to the frame, section size (width × height) (mm): 50 × 120, ground clearance is 370mm. Side guard is bolted or welded to the vehicle, material is Q235. Optional cargo compartment double door position.
-
-
